Air Duct Repair and Sealing in Arcadia

How do undersized ducts wreck a good Trane system?

Arcadia's older ranch stock was built for smaller, single-stage units. Drop a modern variable-speed XV20i or two-stage XL18i onto those tight returns and high static pressure chokes airflow: the coil ices, the compressor short-cycles, and the system never reaches the SEER2 on its label. We check total external static pressure first - if it is over the blower's design limit, ducts are the real problem, not the equipment.

How do you diagnose a duct problem in Arcadia?

Two instruments do the diagnosing. First a manometer goes across the air handler to read total external static pressure: most residential Trane blowers are engineered for roughly 0.5 inches of water column, yet Arcadia's older ranch ducts routinely come back at 0.8 to north of 1.0 - the unmistakable signature of a system strangling itself. Then comes the duct blaster, which seals the registers, pumps the duct system up to a reference pressure, and reports the leakage in CFM. On the aging attic runs around here, 20 to 30 percent of the conditioned air typically escapes into a 130-degree attic - cooling you paid for, vented straight to the one place nobody sits.

From those two numbers the path is obvious. High static with low leakage means the ducts are undersized - we add return capacity and upsize the choke points. Acceptable static with high leakage means we seal. High on both, on a 1950s ranch with a modern variable-speed system bolted on, usually means a partial or full redesign. We measure first because sealing a system that is really undersized just makes a quiet problem louder.

What does duct sealing and a HERS test involve?

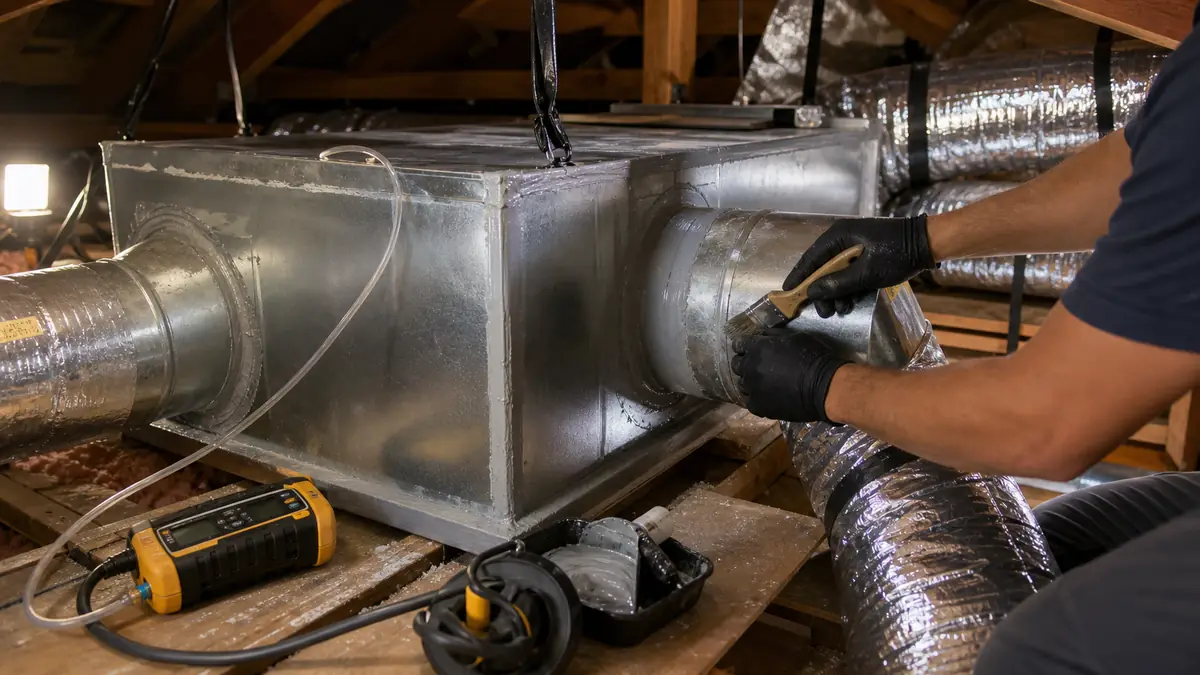

We pressurize the duct system with a duct blaster, measure leakage, seal joints and boots with mastic (not just tape), then re-test to confirm we hit the target. On a Zone 9 alteration, a third-party HERS rater verifies the result so the work meets Title-24. Sealing alone often recovers enough airflow to drop run times and quiet a system that was straining against its own ducts.

The reason we seal with mastic instead of cloth duct tape is that the tape on Arcadia's older systems is exactly what we find failed - decades of attic heat dry the adhesive and the tape peels, which is why a 1950s system that was "sealed" once now leaks at every joint. Brushed-on mastic and mastic-embedded mesh at the boots and plenum take-offs stay sealed through the foothill heat cycles. We also seal the often-ignored leaks: the plenum-to-air-handler connection, the boot-to-drywall gaps at each register, and the return-side leakage that pulls hot attic air straight into the system. Catching the return side matters because a leaky return does not just waste air, it drags 130-degree attic air across the coil and tanks the delivered capacity.

Do Arcadia mansion rebuilds need new duct design?

The big custom rebuilds in Santa Anita Oaks and Upper Rancho usually need a designed duct system with proper trunk sizing and zoning, not the original ranch layout stretched to fit. We lay out supplies and returns for the new footprint, size returns to the variable-speed blower, and zone the system so a 4,000-plus sq ft home does not fight itself. That is what lets an XV20i actually modulate the way it is meant to.

What does duct work cost in Arcadia, and what drives it?

Duct jobs in Arcadia run from about $1,900 to $6,000, with full-home replacement on a large rebuild going higher. The cost drivers, from cheap to expensive: a targeted seal-and-balance of an existing system - mastic on accessible joints and boots plus damper balancing - sits at the low end. Replacing crushed or disconnected flex runs in sections is a mid-range add. Adding return capacity (a second return drop, a larger filter grille) to fix high static pressure on a 1950s ranch is mid-to-high. A full redesigned trunk-and-branch system with zoning for a mansionized footprint is the top of the range. Layered on top in Climate Zone 9 is the HERS rater fee for the required duct-leakage verification on alterations, which we fold into the quote so there is no surprise line item.

Why Arcadia's housing stock makes ducts the real fix

Arcadia splits into two duct stories. The mid-century Lower Rancho, Baldwin Stocker, and Peacock Village ranches were ducted for small single-stage units of their era, with one undersized return in a hallway and long flex runs baking in an unconditioned attic - exactly the layout that chokes a modern Trane condenser and leaks into the foothill heat. The teardown rebuilds going up across Upper Rancho and Santa Anita Oaks are the opposite problem: 4,000-plus square feet on one or two systems where, without zoning and proper trunk sizing, the far wing never keeps up. In both cases the equipment is rarely the limiting part - the duct system is - which is why we read static pressure and leakage before we ever talk about a new condenser.
