Furnace Not Heating in Arcadia
Answer in brief: When a Trane furnace stops heating in Arcadia, CA (91006) the usual causes are a worn hot-surface igniter, a dirty flame sensor, a stuck pressure switch, or an open high-limit. Arcadia Trane HVAC reads the board flash code on site, so call (213) 772-7221 or book online for same-day no-heat help.
Key points
- Service area: Arcadia plus Highland Oaks, Peacock Village, and Upper Rancho (91006, 91007, 91077).
- We diagnose by the integrated furnace control flash code: 2 lockout, 3 pressure switch, 4 high-limit, 8 flame sense, 9 igniter.
- Top no-heat parts: hot-surface igniter, flame sensor, pressure switch, inducer, high-limit.
- Blower runs but no heat usually means a high-limit trip from low airflow.
- Rollout trips and cracked heat exchangers are safety red-tags, not resets.
- Repair lane $120 to $2,300; same-day response.
What makes a Trane furnace lock out in Arcadia?
The integrated furnace control protects the furnace and tells you why it stopped. Count the amber flashes: 2 is a hard lockout after failed ignition retries, 3 is a pressure-switch or inducer problem, 4 is an open high-limit from overheating on low airflow, 8 is a weak flame-sense signal, and 9 is an igniter-circuit fault. Reading the code first means we replace the right part once, not parts by trial and error.
| Flash code / symptom | Likely cause / first check | Cost lane |
|---|---|---|
| 2 flashes - lockout | Worn igniter, no gas, or dirty flame sensor | $150 - $450 |
| 3 flashes - pressure switch | Stuck switch, blocked flue, weak inducer | $150 - $600 |
| 4 flashes - open high-limit | Low airflow, dirty filter or coil | $120 - $500 |
| 8 flashes - low flame sense | Dirty flame rod needs cleaning or replacing | $120 - $300 |
| Rollout trip / 26-type fault | Cracked or blocked heat exchanger - red-tag | Inspect before any repair |
Why does cold air or no air come from a running furnace?
If the blower runs but the air is cold, the burners likely shut on a safety trip while the fan keeps cooling the heat exchanger. The usual culprit is the high-limit opening because airflow is too low - a clogged filter or an undersized return in an older Baldwin Stocker ranch. We replace the filter, measure the temperature rise across the exchanger, and check static pressure rather than just resetting the board, because a repeated limit trip can crack the exchanger over time.
When is no-heat a safety issue, not just a repair?
A rollout-switch trip, a persistent gas odor, or visible soot means stop and shut the gas off - those point to a cracked or blocked heat exchanger that we red-tag rather than band-aid. For the full repair walkthrough see our Arcadia furnace repair page; if the system also cools poorly, check AC not cooling, and for odd cycling see short cycling.
What can I safely check before calling for no heat?
Start with the basics that fix a surprising share of no-heat calls. Make sure the thermostat is switched to heat and dialed above the current room temperature, with fresh batteries if it takes them. Then find the furnace switch - it passes for an ordinary light switch near the unit and gets knocked off all the time. Replace a clogged filter, because low airflow is the number-one cause of a 4-flash high-limit lockout. Make sure the furnace door panel is fully seated, since a loose panel opens the door safety switch and the furnace will not fire. If you smell gas, stop: shut the gas off, leave, and call. Igniter, gas valve, and heat-exchanger work belongs to a licensed tech.
How does a tech read the furnace flash code?

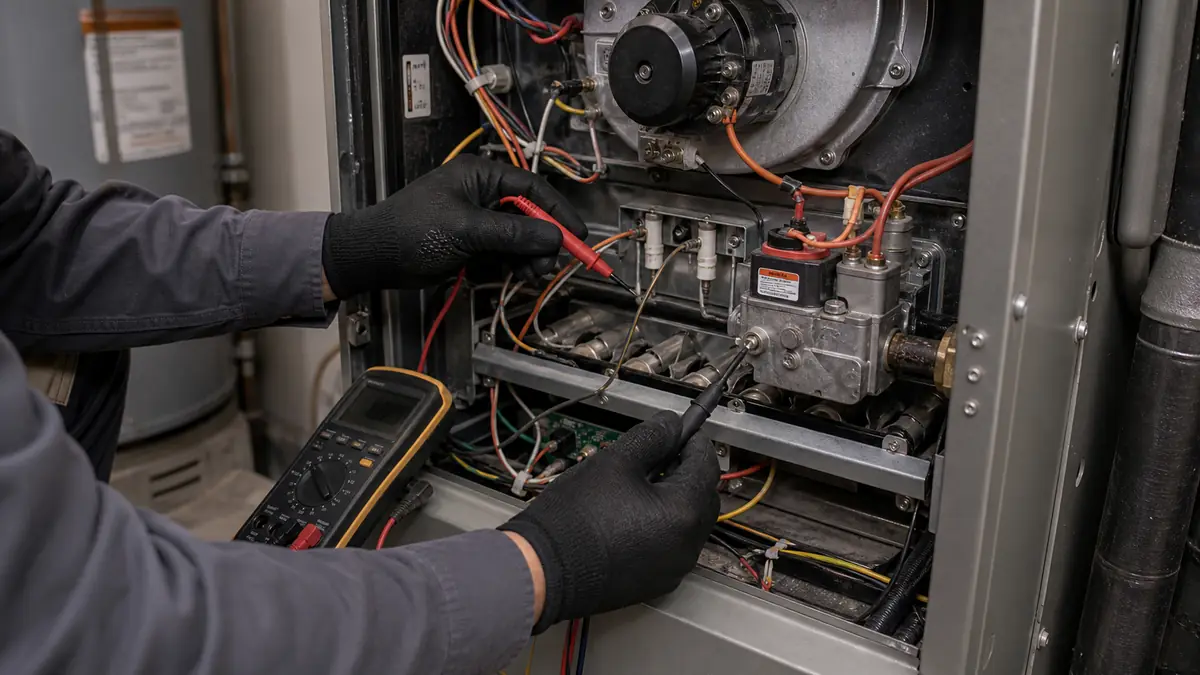

The integrated furnace control blinks an amber LED through a sight window. A tech counts the pattern, then confirms the cause with a meter rather than trusting the code alone. A 2-flash lockout after failed retries usually means a worn hot-surface igniter that no longer reaches ignition temperature, or a flame sensor too coated to prove flame - we measure the flame-rectification microamps (a healthy signal is a few microamps). A 3-flash points at the pressure switch or inducer, so we check for a blocked flue and verify the switch closes. A 4-flash high-limit sends us to static pressure and the filter. Starting from the code is how we put one correct part in instead of swapping our way through the board.
Common questions
My Trane furnace clicks but never lights - what is it?
That is usually the ignition train. A worn hot-surface igniter that no longer glows, or a flame sensor too dirty to prove flame, makes the board retry and then lock out (2 amber flashes). Both are common, inexpensive parts we stock; we confirm with a meter before replacing.
What does it mean when my furnace blower runs but no heat comes out?
Often the high-limit tripped on low airflow (4 flashes): a dirty filter or undersized return overheated the heat exchanger and the board shut the burners while keeping the blower running to cool it down. Replace the filter, check the return, and have the limit and airflow checked.
Is a furnace that smells like gas an emergency in Arcadia?
Yes. A persistent gas smell, a furnace that will not stop trying to light, or repeated rollout trips warrant shutting off the gas and calling immediately. A rollout-switch trip can indicate a cracked or blocked heat exchanger, which is a safety red-tag, not a DIY reset.
Why does my furnace short-cycle on cold Arcadia mornings?
Short heat cycles often mean an overheating furnace tripping the limit, a flame-sense dropout (8 flashes) cutting the burners, or an oversized furnace satisfying the thermostat too fast. We check airflow, the flame sensor signal, and the temperature rise across the heat exchanger.
